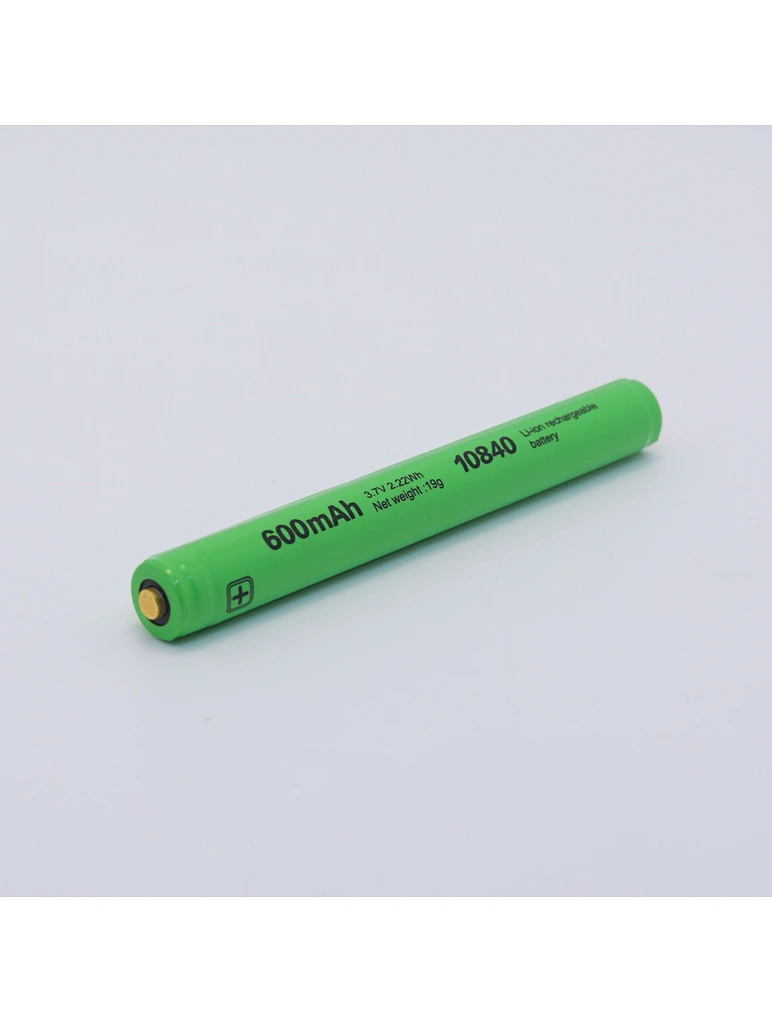

10840 3.7V 600mAh flashlight battery
HG1AE3948
10840 3.7V 600mAh flashlight battery
Model: HG1AE3948
Voltage: 3.7V
Capacity: 600mah
Structure: 1S1P
Application field: Outdoor lighting, military portable flashlight battery
Model: HG1AE3948
Voltage: 3.7V
Capacity: 600mah
Structure: 1S1P
Application field: Outdoor lighting, military portable flashlight battery
Quantity
| Description: | 10840 3.7V 600mAh flashlight battery |
| Product No.: | HG1AE3948 |
| Cell model: | 10840/620mAh/3.7V |
| Battery Specification: | 1S1P/600mAh/3.7V |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 600mAh |
| Charging voltage: | 4.2V |
| Charging current: | 300mA |
| Discharge current: | 300mA |
| Maximum discharge current: | 600mA |
| Discharge cut-off voltage: | 2.75V |
| Internal resistance : | ≤ 180m Ω |
| Delivery voltage: | 3.6-3.9V |
| Battery weight: | 20g |
| Product size: | 89.3* 10.8mm (max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1month - 20-60 ° C; 3months - 20-45 ° C; 12months - 20-25 ° C |
| Relative humidity: | 65 ± 20% |
| Battery structure: | 1S1P |
| Lithium Battery protection: | Short circuit protection,overcharge protection,over discharge protection,over current protection, etc |
| Application field: | Outdoor lighting, flashlight battery |
