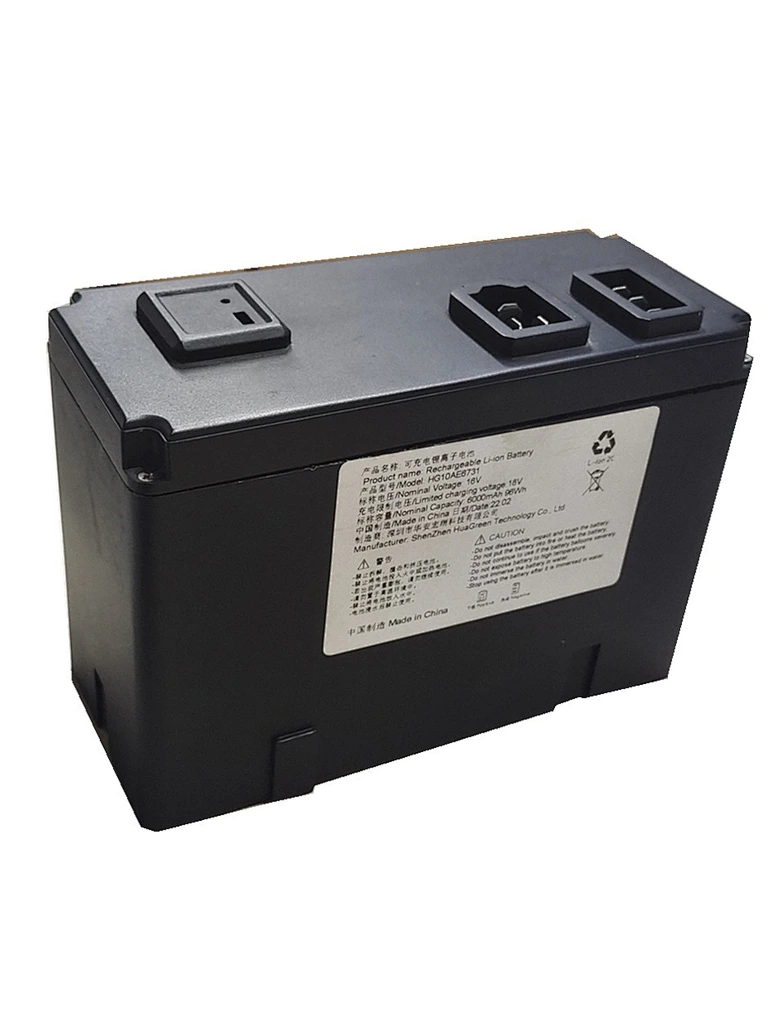

16V 6Ah Li-ion UPS battery pack
HGBU10AE6731
16V 6Ah Li-ion UPS battery pack
Model: HG10AE6731
Voltage: 16V
Capacity: 6Ah
Structure: 5S2P
Application field: UPS,Energy Storage Equipment
Certification: UL1973，IEC62619, UN38.3
Model: HG10AE6731
Voltage: 16V
Capacity: 6Ah
Structure: 5S2P
Application field: UPS,Energy Storage Equipment
Certification: UL1973，IEC62619, UN38.3
Quantity
| Description: | 16V 6Ah Li-ion UPS battery pack |
| Product No.: | HG10AE6731 |
| Cell model: | LiFePO4 3000mAh/3.2V |
| Battery Specification: | 5S2P/6Ah/16V |
| Nominal voltage: | 16V |
| Nominal capacity: | 6Ah |
| Charging voltage: | 18V |
| Charging current: | 6A |
| Discharge current: | 12A |
| Maximum discharge current: | 70A |
| Discharge cut-off voltage: | 10.5V |
| Internal resistance : | ≤45mΩ |
| Delivery voltage: | 15.5-17V |
| Battery weight: | 1.5kg |
| Product size: | 153*68*103mm(max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1 month -5-45°C; 3 months -5-35°C; 12 months -5-30°C. |
| Relative humidity: | 65 ± 20% |
| Battery structure: | Plastic case |
| Lithium Battery protection: | short circuit protection, overcharge protection, over discharge protection, over current protection, Power management，etc. |
| Application field: | Li-ion UPS battery,Energy Storage Equipment |
