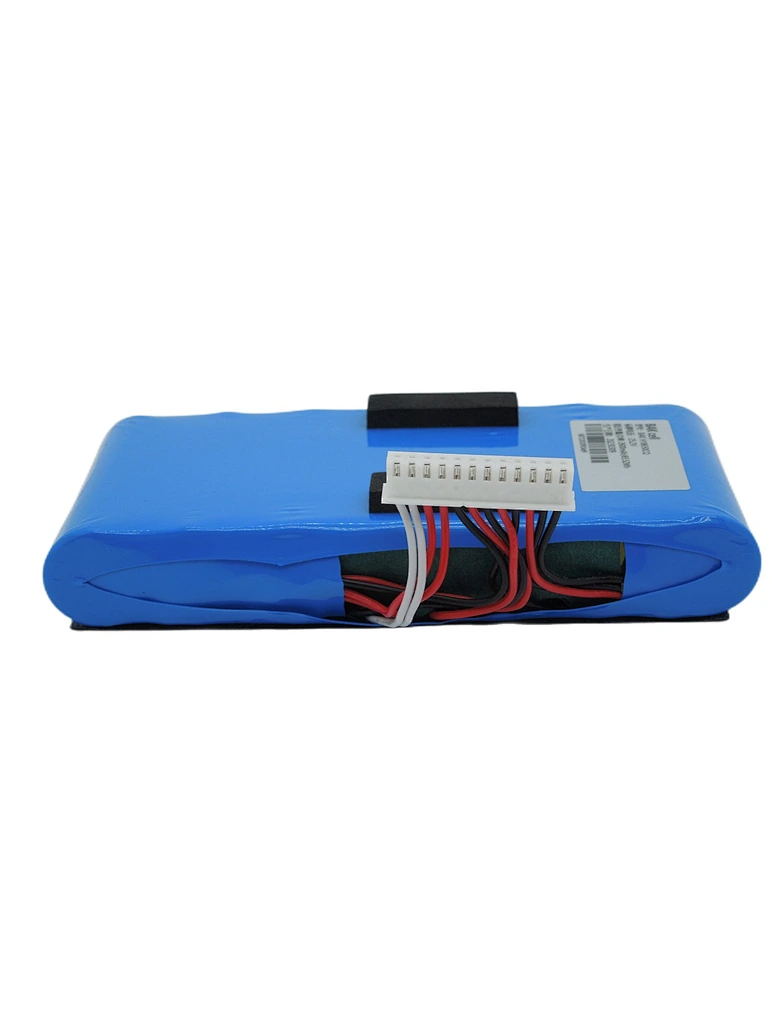

18650 25.2V 2600mAh Electric sofa lithium battery
HG7AE105
18650 25.2V 2600mAh Electric sofa lithium battery
Model: HG7AE105
Voltage: 25.2V
Capacity: 2600mAh
Structure: 7S1P
Application field: Electric sofa,Electric curtain,smart home Battery
Model: HG7AE105
Voltage: 25.2V
Capacity: 2600mAh
Structure: 7S1P
Application field: Electric sofa,Electric curtain,smart home Battery
Quantity
| Description: | 18650 25.2V 2600mAh Electric sofa lithium battery |
| Product No.: | HG7AE105 |
| Cell model: | 18650 / 2600mAh / 3.6V |
| Battery Specification: | 7S1P / 2600mAh /25.2V |
| Nominal voltage: | 25.2V |
| Nominal capacity: | 2600mAh |
| Charging voltage: | 29.4V |
| Charging current: | 520mA |
| Discharge current: | 520mA |
| Maximum discharge current: | 10A |
| Discharge cut-off voltage: | 19.25V |
| Internal resistance : | ≤280mΩ (IR difference:35mΩ) |
| Delivery voltage: | 27.65-29.4V(Voltage difference:15mV) |
| Battery weight: | About 345g |
| Product size: | 131* 69.5 * 20.5mm (Max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1month - 20-60 ° C; 3months - 20-45 ° C; 12months - 20-25 ° C |
| Relative humidity: | 65 ± 20% |
| Battery structure: | 7S1P |
| Lithium Battery protection: | / |
| Application field: | Electric sofa,Electric curtain,smart home powered by Lithium Battery |
