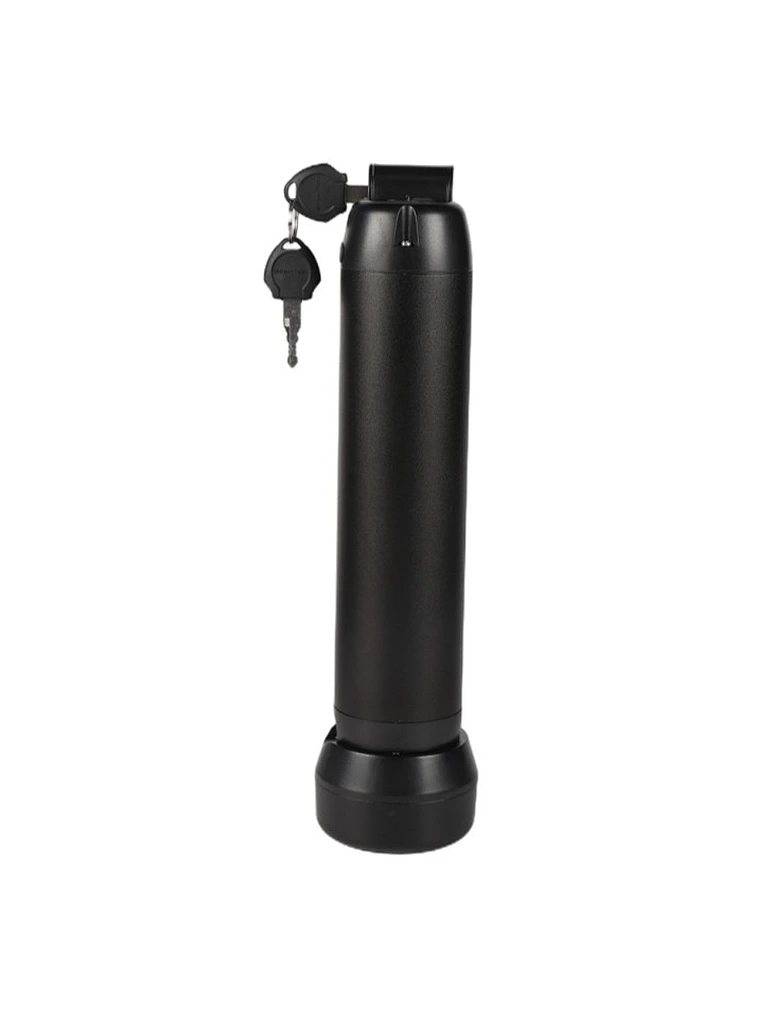

25.2V 8700mah 18500 E-bike Lithium-ion Battery
HG28AE1771
25.2V 8700mah 18500 E-bike lithium-ion battery
Model: HG28AE1771
Voltage: 25.2V
Capacity: 8700mAh
Structure: 7S4P
Application field: E-bike
Model: HG28AE1771
Voltage: 25.2V
Capacity: 8700mAh
Structure: 7S4P
Application field: E-bike
Quantity
Lithium-ion Battery Specification
| Description: | 25.2V 8700mah 18500 E-bike Lithium-ion Battery |
| Product No.: | HG28AE1771 |
| Cell model: | 18500 / 2900mah / 3.6V |
| Battery Specification: | 7S4P / 8700mAh / 25.2V |
| Nominal voltage: | 25.2V |
| Nominal capacity: | 8700mAh |
| Charging voltage: | 29.4V |
| Charging current: | 1740mA |
| Discharge current: | 1740mA |
| Maximum discharge current: | 8.7A |
| Discharge cut-off voltage: | 19.25V |
| Internal resistance : | ≤ 300m Ω |
| Delivery voltage: | ≥ 25.2V |
| Battery weight: | 2.5kg |
| Product size: | 420 * 180 * 45mm (max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1 month - 20-60 ° C; 3 months - 20-45 ° C; 12 months - 20-25 ° C |
| Relative humidity: | 65 ± 20% |
| Battery structure: | |
| Lithium Battery protection: | short circuit protection, overcharge protection, over discharge protection, over current protection, etc |
| Application field: | E-bike |
