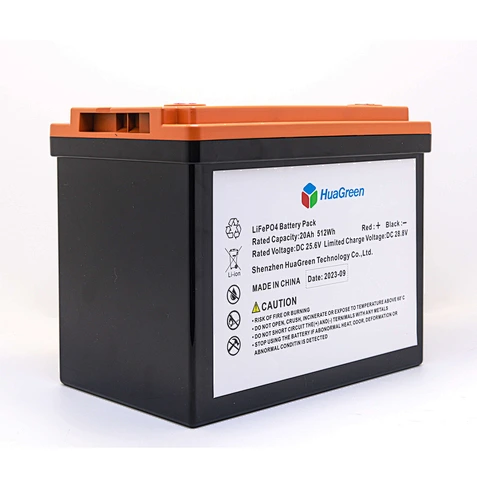

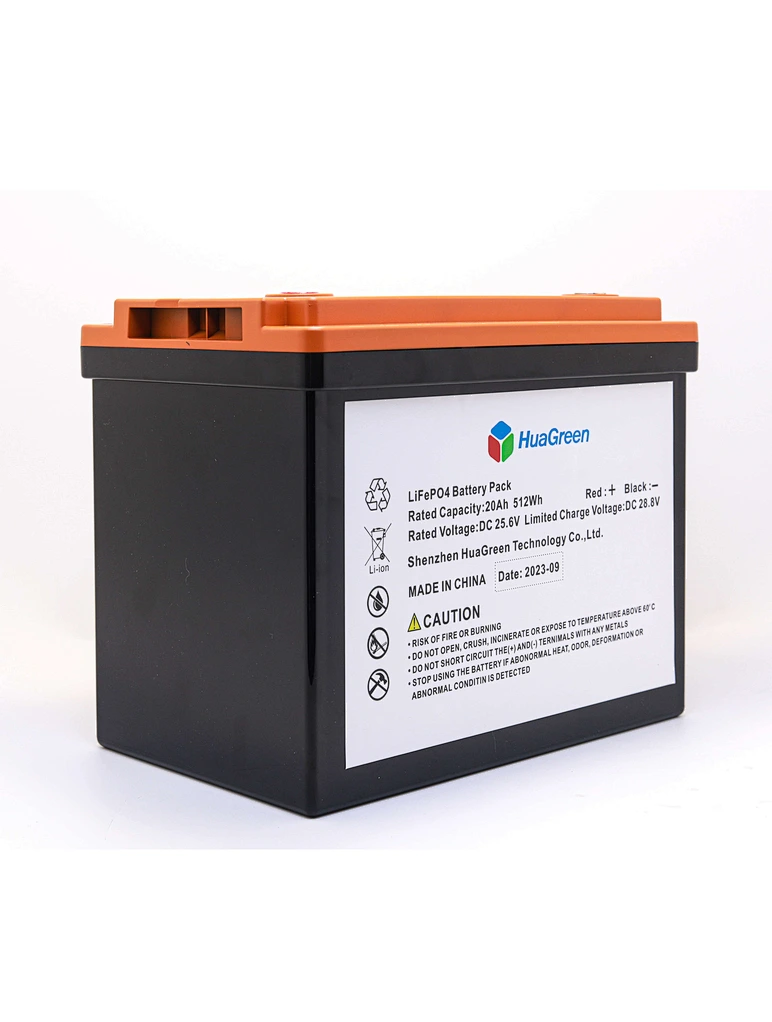

25.6V 20Ah Li-ion energy storage Battery
HG40AE2001
25.6V 20Ah Li-ion energy storage Battery
Model: HG40AE2001
Voltage: 25.6V
Capacity: 20mAh
Structure: 8S5P
Application field:Energy storage,Lithium instead of lead acid
Model: HG40AE2001
Voltage: 25.6V
Capacity: 20mAh
Structure: 8S5P
Application field:Energy storage,Lithium instead of lead acid
Quantity
| Description: | 25.6V 20Ah Li-ion energy storage Battery |
| Product No.: | HG40AE2001 |
| Cell model: | 26650 / 4000mAh / 3.2V |
| Battery Specification: | 25.6V/20Ah |
| Nominal voltage: | 25.6V |
| Nominal capacity: | 20Ah |
| Charging voltage: | 28.8V |
| Charging current: | 20A |
| Discharge current: | 20A |
| Maximum discharge current: | 60A |
| Discharge cut-off voltage: | 16V |
| Internal resistance : | ≤ 400m Ω |
| Delivery voltage: | 25-27V |
| Battery weight: | 6.8kg |
| Product size: | 250*155*210mm (max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1 month - 20-60 ° C; 3 months - 20-45 ° C; 12 months - 20-25 ° C |
| Relative humidity: | 65 ± 20% |
| Battery structure: | |
| Lithium Battery protection: | short circuit protection, overcharge protection, over discharge protection, over current protection, power management, etc |
| Application field: | Energy storage,Lithium instead of lead acid |
