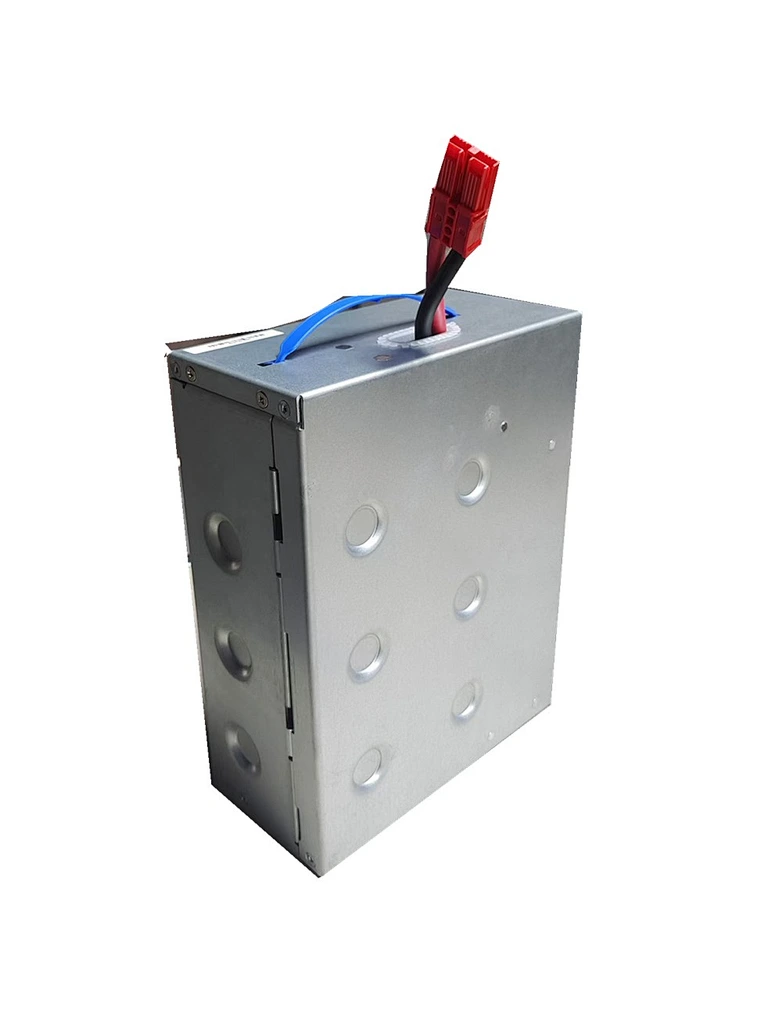

38.4V 6Ah Li-ion UPS battery pack
HG24AE5029
38.4V 6Ah Li-ion UPS battery pack
Model: HG24AE5029
Voltage: 38.4V
Capacity: 6Ah
Structure: 12S2P
Application field: Li-ion UPS battery, Li-ion energy storage battery
Certificates:UL1973,IEC62619,UN38.3
Model: HG24AE5029
Voltage: 38.4V
Capacity: 6Ah
Structure: 12S2P
Application field: Li-ion UPS battery, Li-ion energy storage battery
Certificates:UL1973,IEC62619,UN38.3
Quantity
| Description: | 38.4V 6Ah Li-ion UPS battery pack |
| Product No.: | HG24AE5029 |
| Cell model: | LiFePO4 3000mAh/3.2V |
| Battery Specification: | 12S2P/6Ah/38.4V |
| Nominal voltage: | 38.4V |
| Nominal capacity: | 6Ah |
| Charging voltage: | 43.2V |
| Charging current: | 6A |
| Discharge current: | 6A |
| Maximum discharge current: | 50A |
| Discharge cut-off voltage: | 30V |
| Internal resistance : | ≤50mΩ |
| Delivery voltage: | 38.4-40V |
| Battery weight: | 5kg |
| Product size: | 216*159*78mm |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1 month -5-45°C; 3 months -5-35°C; 12 months -5-30°C. |
| Relative humidity: | 65 ± 20% |
| Battery structure: | Fiber glass board |
| Lithium Battery protection: | short circuit protection, overcharge protection, over discharge protection, over current protection, Power management，etc. |
| Application field: | Li-ion UPS battery,Li-ion energy storage battery |
