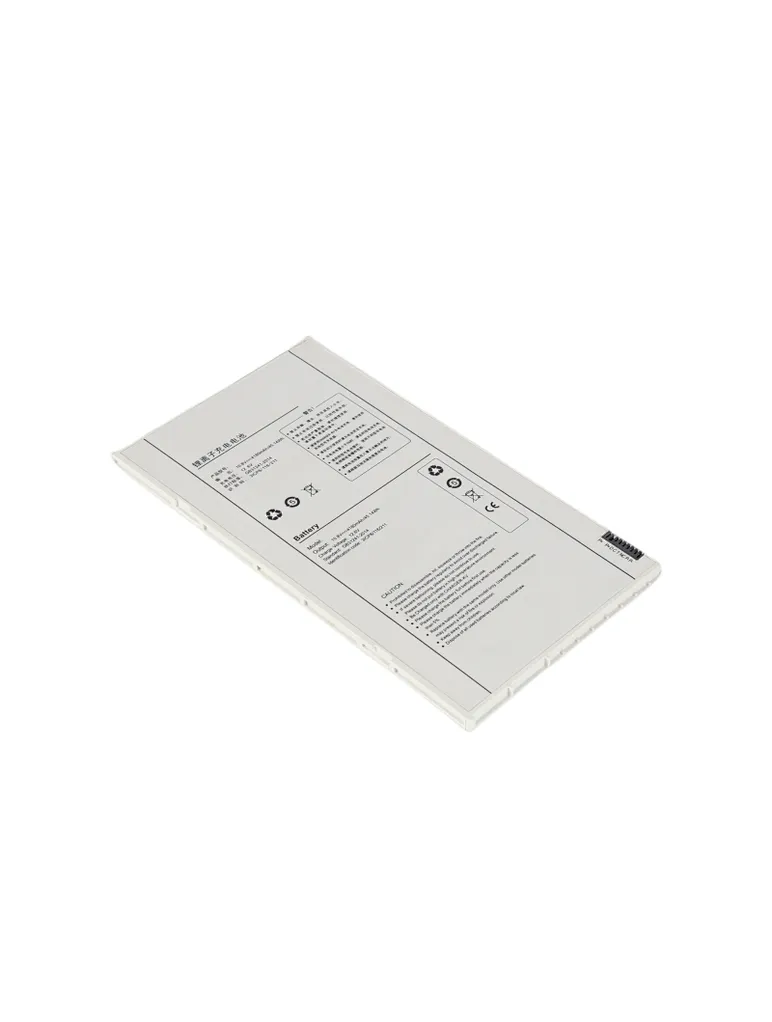

10.8V 4180mAh Wireless Tablet X-ray Detector Lithium Battery
HG3CE5301
10.8V 4180mAh Wireless Tablet X-ray Detector Lithium Battery
Model: HG3CE5301
Voltage: 10.8V
Capacity: 4180mAh
Structure: 3S1P
Application field: medical testing equipment
Model: HG3CE5301
Voltage: 10.8V
Capacity: 4180mAh
Structure: 3S1P
Application field: medical testing equipment
Quantity
Lithium Battery Specification
| Description: | 10.8V 4180mAh Wireless Tablet X-ray Detector Lithium Battery |
| Product No.: | HG3CE5301 |
| Cell model: | 8047100 / 4500mAh / 3.7V |
| Battery Specification: | 3S1P / 4180mAh / 10.8V |
| Nominal voltage: | 10.8V |
| Nominal capacity: | 4180mAh |
| Charging voltage: | 12.6V |
| Charging current: | 836mA |
| Discharge current: | 836mA |
| Maximum discharge current: | 2090mA |
| Discharge cut-off voltage: | 9V |
| Internal resistance : | ≤180mΩ |
| Delivery voltage: | 10.8-12.3V |
| Battery weight: | 160g |
| Product size: | 210 * 115 * 11mm (Max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1month - 20-60 ° C; 3months - 20-45 ° C; 12months - 20-25 ° C |
| Relative humidity: | 65 ± 20% |
| Battery structure: | |
| Lithium Battery protection: | short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.. |
| Application field: | X-ray Detector, medical testing equipment powered by Lithium Battery |
