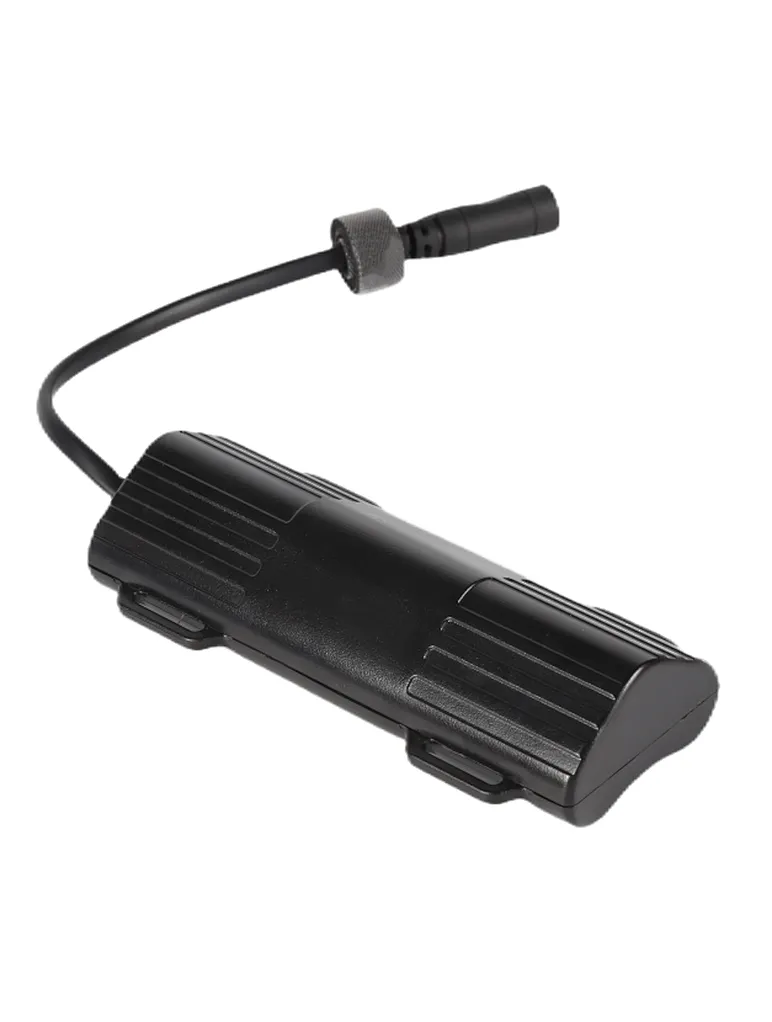

7.2V 5200mAh 18650 Lighting Lithium-ion Battery
HG4AE2551
7.2V 5200mAh 18650 Lighting Lithium-ion Battery
Model: HG4AE2551
Voltage: 7.2V
Capacity: 5200mAh
Structure: 2S2P
Application field: outdoor sports, industrial and mining, portable lighting equipment
Model: HG4AE2551
Voltage: 7.2V
Capacity: 5200mAh
Structure: 2S2P
Application field: outdoor sports, industrial and mining, portable lighting equipment
Quantity
Lithium-ion Battery Specification
| Description: | 7.2V 5200mAh 18650 Lighting Lithium-ion Battery |
| Product No.: | HG4AE2551 |
| Cell model: | Lishen 18650 / 2600mAh / 3.6V |
| Battery Specification: | 2S2P / 5200mAh / 7.2V |
| Nominal voltage: | 7.2V |
| Nominal capacity: | 5200mAh |
| Charging voltage: | 8.4V |
| Charging current: | 1040mA |
| Discharge current: | 1040mA |
| Maximum discharge current: | 3000mA |
| Discharge cut-off voltage: | 5.5V |
| Internal resistance : | ≤200mΩ |
| Delivery voltage: | 6.8-8.0V |
| Battery weight: | 230g |
| Product size: | 165.7 * 45.16 * 36.8mm (Max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1month - 20-60 ° C; 3months - 20-45 ° C; 12months - 20-25 ° C |
| Relative humidity: | 65 ± 20% |
| Battery structure: | |
| Lithium Battery protection: | short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc. |
| Application field: | outdoor sports, industrial and mining, portable Lighting equipments powered by Lithium-ion Battery |
